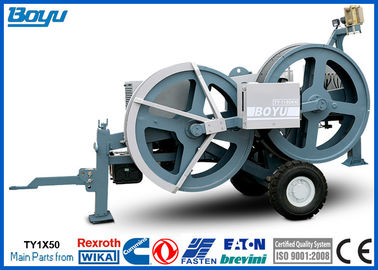

Overhead 50kN 5T Hydraulic Tensioner with German Rexroth Speed Reducer Cummins Diesel Engine

China Overhead 50kN 5T Hydraulic Tensioner with German Rexroth Speed Reducer Cummins Diesel Engine supplier
Overhead 50kN 5T Hydraulic Tensioner with German Rexroth Speed Reducer Cummins Diesel Engine supplier Overhead 50kN 5T Hydraulic Tensioner with German Rexroth Speed Reducer Cummins Diesel Engine supplier Overhead 50kN 5T Hydraulic Tensioner with German Rexroth Speed Reducer Cummins Diesel Engine supplier Overhead 50kN 5T Hydraulic Tensioner with German Rexroth Speed Reducer Cummins Diesel Engine supplier

Large Image :  Overhead 50kN 5T Hydraulic Tensioner with German Rexroth Speed Reducer Cummins Diesel Engine

Product Details:

Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY1X50

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 25-35 days
Payment Terms: TT/LC
Supply Ability: 100sets/month.
Price terms: FOB(Shanghai) or CIF (assigned port).
Contact Now
Detailed Product Description
After Sales Service: Available OEM: Avaiable
Max Tension: 1x50kN Max Conductor Diameter: 55mm
Hydraulic Meter: German Wika Engine: Cummins

Overhead 50kN 5T Hydraulic Tensioner with German Rexroth Speed Reducer Cummins Diesel Engine



Quick details
1. HydraulicTension Stringing Equipment
2. Hydraulic Tensioner
3. Max tension: 1x50kN
4. Diesel: Cummins 77kw 103hp
5. Max conductor diameter: 55mm
6. Max Optical fiber cable diameter: 21mm

7. Main pump and motor and speed reducer: German Rexroth
8. Hydraulic meter: German Wika

9. Groove number: 6
10. Bull-wheel diameter: 1300/1500mm
11. Engine: Cummins

12. Boyu Brand


Overhead 50kN 5T Hydraulic Tensioner with German Rexroth Speed Reducer Cummins Diesel Engine


Description
The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance. The hydraulic power unit provides the traction of conductors at both positive and negative directions. The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred.


Performance

  • Max intermittent tension: 1x50kN
  • Max continuous tension: 1x40kN
  • Speed at max tension: 2.5km/h
  • Max speed: 5km/h
  • Tension at max speed: 1x25kN
  • Max reverse pulling force: 1x45kN
  • Max reverse pulling speed: 5km/h


Engine

  • Diesel   77kw(103hp)
  • Cooling system   water
  • Electrical system  24V


Characteristics

  • Bull-wheel diameter: 1300/1500mm
  • Max conductor diameter: 55mm
  • Max Optical fiber cable diameter: 21mm
  • Groove width: 68mm
  • Groove number: 6
  • Total weight: 2400kg
  • Overall dimension (length*width*height): 4000×1900×2300mm


Main configuration

  • Engine: Cummins
  • Operating handle: German Rexroth
  • Hydraulic pump: German Rexroth
  • Main motor: German Rexroth
  • Speed reducer: German Rexroth
  • Hydraulic meter: German WIKA


Configuration

  • Hydraulic dynamometers
  • Hydraulic oil cooling system
  • Mechanical meter counters
  • Grounding connection point


Hydraulic Transmission

  • The machine can realize step less speed.
  • The machine is provided with tension presetting system.


Additional Devices

  • Lighting system for the trailer
  • Air brake system for the trailer(extra charge)
  • Hydraulic conductor clamps for drum change
    operations (extra charge)
  • Swivel guide rope roller
  • Trailer for towing at max speed of 30 km/h
  • Digital speed and meter counter





More photos
Overhead 50kN 5T Hydraulic Tensioner with German Rexroth Speed Reducer Cummins Diesel EngineOverhead 50kN 5T Hydraulic Tensioner with German Rexroth Speed Reducer Cummins Diesel Engine




Manufacturer Introduction
Jiangsu Province Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake. From our factory to Shanghai about 3 hours by car.

Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:
Hydraulic Tension Stringing Equipment and accessories and tools.
Nonmetallic galvanized the production equipment (Achieved high-tech products)
Numerical control machine
Low voltage no power-arc furnace compensation system

We produce 40~60sets of stringing equipment each month and all kinds of accessories.



  1. Main configurations of our machine are from Germany and USA
  Engine: American Cummins
  Main pump: German Rexroth
  Main motor& speed reducer: German Rexroth
  Tail bracket hoisting motor: American Eton
  Hydraulic meter: German WIKA
  2. Our company was founded in 1997, having 15 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.
  3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
  4. We can supply the specific components to the buyers with cost price after warranty period.

Overhead 50kN 5T Hydraulic Tensioner with German Rexroth Speed Reducer Cummins Diesel Engine

Overhead 50kN 5T Hydraulic Tensioner with German Rexroth Speed Reducer Cummins Diesel EngineOverhead 50kN 5T Hydraulic Tensioner with German Rexroth Speed Reducer Cummins Diesel Engine



Work site
Overhead 50kN 5T Hydraulic Tensioner with German Rexroth Speed Reducer Cummins Diesel Engine

Overhead 50kN 5T Hydraulic Tensioner with German Rexroth Speed Reducer Cummins Diesel Engine



1x50kN 5T Hydraulic Tension Stringing Equipment with German Rexroth Speed Reducer TY1X50





TY1x50 Hydraulic Tensioner

The machine is hydraulically controlled for the tensile force and complete with quality parts and components such as hydraulic break, high-performance finned radiator, hydraulic power unit, precision filtering unit to support the safe, high-quality and efficient performance. The hydraulic power unit provides the traction of conductors at both positive and negative directions. The single-beam trailer chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve a portable compact integrity easy to be loaded, transported and transferred.

Characteristics

Bull-wheel diameter:1500mm

Max conductor diameter: 55mm

Max Optical fiber cable diameter: 21mm

Groove width: 68mm

Groove number: 6

Total weight:4400kg

Overall dimension (length*width*height): 4000×1900×2300mm

Performance

Max intermittent pull:50kN

Max continuous pull: 40kN

Speed at max pull: 2.5km/h

Max speed: 5km/h

Pull at max speed:25kN

Max reverse pulling force: 45kN

Max reverse pulling speed: 2.4km/h

Main configuration

Engine: Cummins

Hydraulic pump: German Rexroth/Dnish Danfoss

Main motor:German Rexroth/French Leduc

Speed reducer: German Rexroth

Hydraulic meter: German WIKA

Operating handle: German Rexroth

Engine

Diesel 77kw(103hp)

Cooling system water

Electrical system 24V

Hydraulic Transmission

The machine can realize step less speed.

The machine is provided with tension presetting system.

Configuration

Hydraulic dynamometers

Hydraulic oil cooling system

Mechanical meter counters

Grounding connection point

Hydraulic power pack to control drum stands with hydraulic motor

Additional Devices

Lighting system for the trailer

Air brake system for the trailer

Hydraulic conductor clamps for drum change operations (extra charge)

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Digital speed and meter counter
