| Engine: | Cummins | Hydraulic Pump: | German Rexroth |
|---|---|---|---|
| Main Motor: | German Rexroth | Speed Reducer: | German Rexroth |
| Tail Bracket Hoisting Motor: | American Eton | Type: | Transmission Line Stringing Equipment Hydraulic Puller |
| High Light: | stringing hydraulic pulling equipment,stringing hydraulic cable puller,stringing hydraulic wire puller |
||

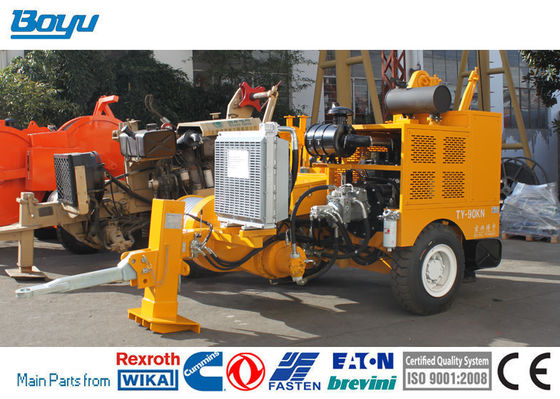

Transmission Line Stringing Equipment Hydraulic Puller German Rexroth Main motor
|
Performance |
|
|
Max pull |
100kN |
|
Max continuous pull |
90kN |
|
Speed at max pull |
2.5km/h |
|
Max speed |
5km/h |
|
Pull at max speed |
40kN |
|
Characteristics |
|
|
Groove number |
8 |
|
Bull-wheel diameter |
540mm |
|
Max rope diameter |
21mm |
|
Total weight |
4350kg |
|
Max diameter of rope reel |
1400mm |
|
Overall dimension (length*width*height) |
4500×2100×2450mm |
|
Main configuration |
|
|
Engine |
Cummins |
|
Hydraulic pump |
German Rexroth |
|
Main motor |
German Rexroth |
|
Tail bracket hoisting motor |
American Eton |
|
Operating handle |
German Rexroth |
|
Speed reducer |
German Rexroth |
|
Hydraulic meter |
German |
|
Engine |
|
|
Diesel |
118kw(158hp) Euro II, 4-stroke cycle, turbo-charged |
|
Cooling system |
liquid |
|
Electrical system |
24V |
|
Hydraulic Transmission |
Closed hydraulic circuit for step less speed variation in both rotating directions. |
| This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur. | |
|
Additional Devices |
Lighting system for the trailer |
|
Hydraulic rope clamp for reel change |
|
|
Digital speed and meter counter (extra charge) |
|
|
Swivel guide rope roller |
|
|
Trailer for towing at max speed of 30 km/h |
|
|
Extra shaft |
|
|
Configuration |
Control instruments for hydraulic system and diesel engine |
|
Hydraulic front stabilizer |
|
|
Hydraulic dynamometer with set-point and automatic control of maximum pull |
|
|
Grounding connection point |
|
|
On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400 |
|
|
Hydraulic oil cooling system |
|
|
Additional Devices |
The chassis provided with Brake, back lights and mudguard, with a single point lift to allow lifting with a crane. |
|
Hydraulic system for drum stand control with flat face quick action couplings |
|
|
Lockable toolbox, Holding fixture for hose kit, Grounding plate, Acoustic insulation |
|
|
Cable and radio remote control fully replacing all controls at machine panel. |
|
|
Auxiliary Hydraulic system (700/1000 bar) for power pressing tool |
|
|
Remote diagnosis via GSM network with GPS modem, Synchronization system |
|
|
Biodegradable hydraulic oil, Allowable tension indictor, Overload tension alarm, First Aid Kit |
|
|
Manufacturer's recommended tools. |
|
|
Manufacturer's workshop maintenance manual, in English |
|
|
Manufacturer's routine spares for five years' duty (filters, bulbs, etc.). |
|
