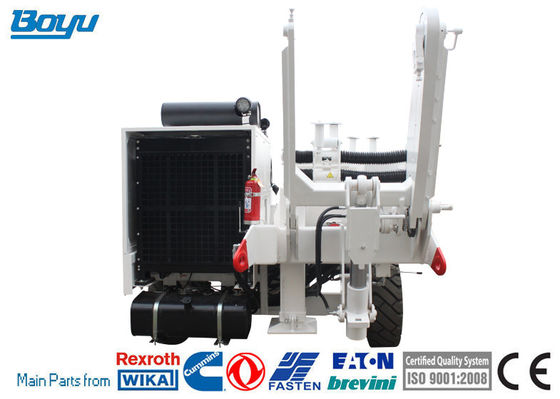

120 KN Transmission Line Stringing Equipment Puller Hydraulic Puller

120 KN Transmission Line Stringing Equipment Puller Hydraulic Puller
120 KN Transmission Line Stringing Equipment Puller Hydraulic Puller 120 KN Transmission Line Stringing Equipment Puller Hydraulic Puller

Large Image :  120 KN Transmission Line Stringing Equipment Puller Hydraulic Puller

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY150-9
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Type: Transmission Line Stringing Equipment TY150 Hydraulic Puller Max Intermittent Pulling Force: 150kN
Overall Dimension (length*width*height): 4800*2350*2470 Mm Max Continuous Tractive Speed: 5 Km/h
Engine Model: Straight Type Six-cylinder Pressurizing Four-stroke Diesel Engine Rotary Speed When Maximum Torque: 1500 R/min
High Light:

5 km/h Transmission Line Stringing Equipment

,

120kN Transmission Line Stringing Equipment

Transmission Line Stringing Equipment TY150 Hydraulic Puller Max Continuous Pulling Force 120 kN



  1. In tension stringing construction, puller is one indispensable tool of main tools and its performance has direct impact on quality and progress of stringing construction.
  2. Important components of the puller, with reasonable design and high safety coefficient, are selected from international famous professional manufacturers such as German Rexroth, German , American Eton, Italian ATOS; other parts and auxiliary equipment are also selected from domestic excellent products, in addition to strict production management by this company, thereby it effectively guarantees fine performance and reliable quality of the product and wins the flavors of numerous customers.

Purposes and characteristic

  1. The machine is a kind of high efficiency electric construction machinery, with good entire performance, high configuration of main functional components, large power reserve, quick pulling speed and wide application.
  2. The machine is mainly matched with small efficiency tensioner, is used for the stringing of pulling ropes and also pulls conductor under meeting pulling force.
  3. It can satisfy the stringing of double-bundle LGJ-720 and below conductor in mountainous area and foothills, four-bundle LGJ-630 and below conductor in flatlands, OPGW or ADSS optical cable in various terrains, and 500KV and below wire pulling ropes in various terrains.

Main technical performance parameter

  1. Max intermittent pulling force: 150kN
  2. Max continuous pulling force: 120 kN
  3. Corresponding speed: 2.5 km/h
  4. Max continuous tractive speed: 5 km/h
  5. Corresponding pulling force: 60 kN

Main pump

  1. Model: sloping cam plate bi-directional plunger pump (German Rexroth)
  2. Type: A4VG250EP4DT1/32R-NSF02F021

Hydraulic motor

  1. Model: inclined-axis bi-directional constant displacement tapered plunger motor (German Rexroth)
  2. Type: A2FE180/61W-VZL106

Structure parameter

  1. Pulling wheel diameter: 600mm
  2. Groove number: 9
  3. Max diameter of applicable pulling rope: 26mm
  4. Weight: 6600kg
  5. Overall dimension (length*width*height): 4800*2350*2470 mm
  6. Hoisting mode: single point

Structure parameter

  1. Pulling wheel diameter: 600mm
  2. Groove number: 9
  3. Max diameter of applicable pulling rope: 26mm
  4. Weight: 6600kg
  5. Overall dimension (length*width*height): 4800*2350*2470 mm
  6. Hoisting mode: single point

Auxiliary oilway hydraulic system

Open type constant displacement throttle speed governing hydraulic system is supplied oil by gear pump and controls oil liquor’s cooling and hoisting tail bracket’s lifting of the whole hydraulic system through hand operated direction valve and ball valve.

  1. System working pressure: 12Mpa
  2. Duplex gear pump: 1PF2G2-4X/016+014RR20MRL
  3. Fan motor: GM5-12-1FE13-S-20
  4. Hoisting motor: J2K-305
  5. Sleeve extension oil cylinder: 3TG110×250
  6. Radiator: B5024

Engine

  1. Type: Cummins 6CTA8.3-C260
  2. Model: Straight type six-cylinder pressurizing four-stroke diesel engine
  3. Cylinder diameter * stroke: 114*135 mm
  4. Total air output: 8.3 L
  5. Rated speed: 2200 r/min
  6. Rated power (one hour power): 194 kw
  7. Max torque: 1135Nm
  8. Rotary speed when maximum torque: 1500 r/min
  9. Fuel consumption rate (bench test): 238g/kw.h
  10. Cooling method: forced air cooling





















120 KN Transmission Line Stringing Equipment Puller Hydraulic Puller 0
