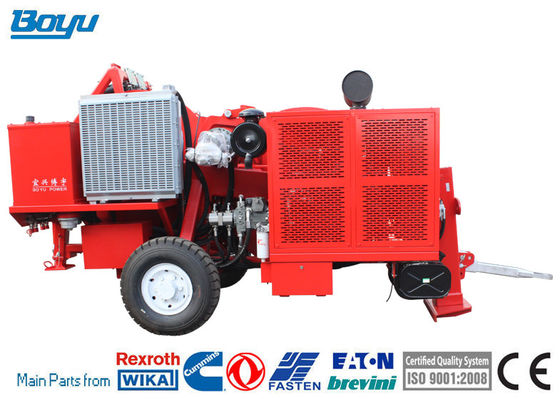

118kw 10 Groove Hydraulic Puller Tensioner Machine Hydraulic Pump German Rexroth

118kw 10 Groove Hydraulic Puller Tensioner Machine Hydraulic Pump German Rexroth
118kw 10 Groove Hydraulic Puller Tensioner Machine Hydraulic Pump German Rexroth
video play

Large Image :  118kw 10 Groove Hydraulic Puller Tensioner Machine Hydraulic Pump German Rexroth

Product Details:
Place of Origin: China
Brand Name: BOYU
Certification: ISO9001
Model Number: TY90TP-24
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Type: Hydraulic Puller Tensioner Machine For Transmission Line Stringing Equipment Engine: Cummins
Diesel: 118kw(158hp) Electrical System: 24V
Max Pull: 90kN Speed At Max Pull: 2.4km/h
Max Tension: 90kN Max Speed: 5km/h
High Light:

hydraulic puller tensioner machine

,

10 groove hydraulic puller tensioner

,

118kw hydraulic puller tensioner

Hydraulic Puller Tensioner Machine For Transmission Line Stringing Equipment 10 Groove Number



TY90TP Hydraulic Puller-Tensioner

  • The machine is suitable to string one or two ropes or bundled conductors. The bull-wheel grooves are made of high resistance interchangeable nylon sectors. The machine is completely electronically controlled.

Characteristics

  • Bull-wheel diameter: 1500mm
  • Max rope diameter: 18mm
  • Groove number: 10
  • Max conductor diameter: 40mm
  • Total weight: 4600kg
  • Overall dimension (length*width*height): 4700×2300×2700mm

Performance

Puller

  • Max pull: 90kN
  • Speed at max pull: 2.4km/h
  • Max speed: 5km/h
  • Pull at max speed: 44kN

Tensioner

  • Max tension: 90kN
  • Max speed: 5km/h

Engine

  • Diesel: 118kw(158hp)
  • Cooling system: water
  • Electrical system: 24V

Main configuration

  • Engine: Cummins
  • hydraulic pump: German Rexroth
  • Main motor: German Rexroth
  • speed reducer: German Rexroth
  • Hydraulic meter: German
  • Operating handle: German Rexroth

Hydraulic Transmission

  • Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.

Configuration

  • Negative self-acting hydraulic brakes
  • Hydraulic dynamometers with set-point and automatic control of maximum pull
  • Hydraulic oil cooling system
  • Digital meter counters
  • Control instruments for hydraulic system and diesel engine
  • Rigid axles for towing at max speed of 30km/h with mechanical parking brake
  • Hydraulic power pack to control up to 2 reel stands with hydraulic head or 2 reel winders
  • Hydraulic front stabilizer
  • Grounding connection point

Additional Devices

  • Lighting system for the trailer
  • 2 hydraulic rope/conductor clamp(extra charge)
  • Swivel guide rope roller
  • Trailer for towing at max speed of 30 km/h
  • Digital speed and meter counter
