| Type: | Tension Machine For Overhead Stringing | Max Intermittent Pull: | 2x70kN |
|---|---|---|---|
| Max Continuous Pull: | 2x60kN | Bull-wheel Diameter: | 1700mm |
| Max Conductor Diameter: | 45mm | Overall Dimension (length*width*height): | 4700*2300*2700mm |
| Engine: | Cummins | Diesel: | 77kw(103hp) |
| High Light: | 1700mm Cable Stringing Equipment,45mm Cable Stringing Equipment |
||

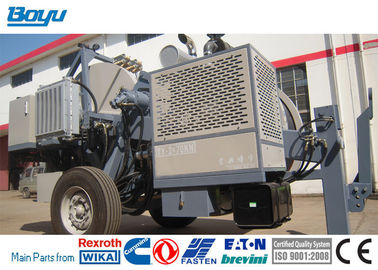

Cable Stringing Equipment TY2x70 Max Intermittent Pull 2x70kN Tension Machine For Overhead Stringing
|
TY2x70 Hydraulic Tensioner The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains |
|
|
Characteristics Bull-wheel diameter: 1700mm Max conductor diameter: 45mm Groove number: 2x6 Total weight: 9000kg Overall dimension (length*width*height):4700*2300*2700mm |
Performance Max intermittent pull: 2x70kN Max continuous pull: 2x60kN Speed at max pull: 2.5km/h Max speed: 5km/h Pull at max speed: 2x30kN/1x60kN Max reverse pulling force: 2*60kN/1*120kN Max reverse pulling speed: 3km/h |
|
Main configuration Engine: Cummins Hydraulic pump: German Rexroth/Dnish Danfoss Main motor: German Rexroth/French Leduc Speed reducer: German Rexroth Hydraulic meter: German Operating handle: German Rexroth |
Engine Diesel: 77kw(103hp) Cooling system: water Electrical system: 24V |
|
Hydraulic Transmission The machine can realize step less speed. The machine is provided with tension presetting system. |
|
|
Configuration 2 negative self-acting hydraulic brakes 2 hydraulic dynamometers Hydraulic oil cooling system 2 digital meter and speed counters Control instruments for hydraulic system and diesel engine Rigid axle for towing at max speed of 30km/h with mechanical parking brake Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor Grounding connection point |
Additional Devices Lighting system for the trailer 2 hydraulic rope/conductor clamp (extra charge) Swivel guide rope roller Trailer for towing at max speed of 30 km/h Digital speed and meter counter Air brake system for the trailer |
| Other Model | |||||
| Model | Bull-wheel diameter | Max conductor diameter | Groove number | Total weight | Overall damension |
| mm | mm | kg | mm | ||
| TY2X35 | 1300 | 40 | 2x5 | 4500 | 4300*2250*2700 |
| TY2X40 | 1300/1500 | 40 | 2x5 | 6230 | 4300*2250*2700 |
| TY2X50 | 1300/1500 | 40 | 2x5 | 6000 | 4700*2300*2700 |
| TY2X70 | 1700 | 40 | 2x6 | 7500 | 4700*2300*2700 |
| TY2x70IV | 1500 | 40 | 2x8 | 10000 | 5500*2280*2700 |
| TY2X90 | 1900 | 50 | 2x6 | 7500 | 5400*2300*2700 |
| TY4x50 | 1500 | 40 | 4x5 | 13000 | 5900*2300*2700 |
| Other Model | |||||||||
| Model |
Max intermittent tension |
Max continuous tension | Speed at max tension | Max speed | Tension at max speed | Max reverse pulling speed | Diesel | Cooling system | Electrical system |
| kN | kN | km/h | km/h | kN | km/h | kw(hp) | V | ||
| TY2X35 |
2x40/ 1x80 |
2x35/ 1x70 |
2.5 | 5 |
2x20/ 1x40 |
5 | 77(103) | Water | 24 |
| TY2X40 |
2x45/ 1x90 |
2x40/ 1x80 |
2.5 | 5 |
2x20/ 1x40 |
5 | 77(103) | Water | 24 |
| TY2X50 |
2x55/ 1x110 |
2x50/ 1x100 |
2.5 | 5 |
2x25/ 1x50 |
5 | 77(103) | Water | 24 |
| TY2X70 |
2x70/ 1x140 |
2x65/ 1x130 |
2.5 | 5 |
2x25/ 1x50 |
5 | 77(103) | Water | 24 |
| TY2x70IV |
2x70/ 1x140 |
2x65/ 1x130 |
2.5 | 5 |
2x25/ 1x50 |
5 | 77(103) | Water | 24 |
| TY2X90 |
2x100/ 1x200 |
2x90/ 1x180 |
2.5 | 5 |
2x40/ 1x80 |
2 |
130kw (2500r/min) |
Water | 24 |
| TY4x50 |
4x50/ 2x200 |
4x40/ 2x80 |
2.5 | 5 |
4x20/ 2x40 |
1.25 | 77(103) | Water | 24 |
