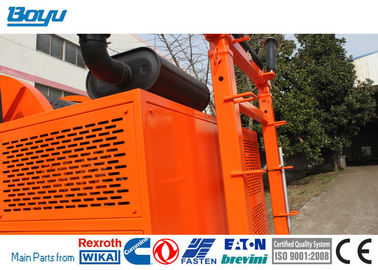

Ty2x80 Diesel 97kw 130hp Cable Line Tensioner Hydraulic Cummins Engine

Ty2x80 Diesel 97kw 130hp Cable Line Tensioner Hydraulic Cummins Engine
Ty2x80 Diesel 97kw 130hp Cable Line Tensioner Hydraulic Cummins Engine
video play

Large Image :  Ty2x80 Diesel 97kw 130hp Cable Line Tensioner Hydraulic Cummins Engine

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY2x80-27
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets/month
Detailed Product Description
Max Tension: 2x100kN / 1x200kN Rated Tension: 2x80kN / 1x160kN
Engine: Cummins Diesel: 97kw(130hp)
Overall Dimension (length*width*height): 5520×2280×2850mm Groove Number: 2x6
Max Reverse Pulling Force: 2x40kN/1x80kN Cooling System: Water
High Light:

transmission line stringing equipment

,

cable line tensioner



TY2x80 Tension Stringing Equipment Diesel 97kw(130hp) Hydraulic Tensioner Cummins Engine



Model TY2x80
Max tension 2x100kN / 1x200kN
Rated tension 2x80kN / 1x160kN
Diesel 97kw(130hp)
Engine Cummins



Performance

Max tension: 2x100kN / 1x200kN

Rated tension: 2x80kN / 1x160kN

Speed at max tension: 2.5km/h

Max feeding speed: 5km/h

Pull at max speed: 2x40kN/1x80kN

Max reverse pulling force: 2x40kN/1x80kN

Max reverse pulling speed: 3km/h



Characteristics

Bull-wheel diameter: 1850mm

Groove number: 2x6

Max conductor diameter: 48.75mm

Total weight: 10000kg

Overall dimension (length*width*height):5520×2280×2850mm



Engine

Diesel 97kw(130hp)

Cooling system water

Electrical system 24V



Main configuration

Engine: Cummins

Hydraulic pump: German Rexroth/Dnish Danfoss

Main motor:German Rexroth/French Leduc

Speed reducer: German Rexroth

Hydraulic meter: German

Operating handle: German Rexroth



Hydraulic Transmission

The machine can realize step less speed.

The machine is provided with tension presetting system.



Configuration

2 negative self-acting hydraulic brakes

2 hydraulic dynamometers

Hydraulic oil cooling system

2 digital meter counters

2 digital speed meters

Control instruments for hydraulic system and diesel engine

Rigid axle for towing at max speed of 30km/h with mechanical parking brake

Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor

Grounding connection point



Additional Devices

Lighting system for the trailer

2 hydraulic rope/conductor clamp (extra charge)

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Digital speed and meter counter

Air brake system for the trailer


Ty2x80 Diesel 97kw 130hp Cable Line Tensioner Hydraulic Cummins Engine 0



Company Profile

Our company is located in Yixing City, Jiangsu Province with a total area of ​​42,800 square meters and more than 160 employees.

Our company is a high-tech enterprise in Jiangsu Province and has six patents, two of which are invention patents.

Our company has formed four series of products:

  • Power construction tools
  • Non-metallic galvanized production equipment (obtained high-tech products)
  • CNC machine tools
  • Low-voltage unpowered electric arc furnace compensation system

Boyu has more than 40 sets of processing equipment, including 35 sets of mechanical processing equipment (including lathes, files, planers, grinders, etc.), and 2 sets of vertical test equipment.

Our company is a Chinese high-tech enterprise with over 27 years of production experience. Boyu has more than 160 employees, including 16 engineers.

After years of hard work, Boyu has developed into one of China's largest manufacturers of stringing equipment and tools, and currently has more than 200 products.
