| Type: | Hydraulic Tensioner | Max Continuous Tension: | 30kN |
|---|---|---|---|
| Bull-wheel Diameter: | 1300mm | Overall Dimension: | 3700×1950×2150mm |
| Total Weight: | 2064kg | Gassoline Engine: | 12kw(16hp) |
| Engine: | Japan Honda (or Robin) | Speed Reducer: | German Rexroth / Italy Brevini |
| High Light: | transmission line stringing equipment,overhead line equipment |
||

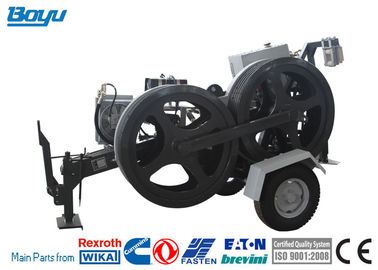

Tension Stringing Equipment Hydraulic Tensioner Engine Japan Honda (or Robin)
| Model |
Max intermittent tension |
Max continuous tension | Speed at max tension | Max speed | Tension at max speed | Max reverse pulling force | Max reverse pulling speed | Diesel | Cooling system | Electrical system |
| kN | kN | km/h | km/h | kN | kN | km/h | kw(hp) | V | ||
| TY1X7.5 | 7.5 | 2.4 | ||||||||
| TY1X20 | 20 | 5 | ||||||||
| TY1X20II | 20 | 4 | ||||||||
| TY1X20III | 20 | 2.5 | 5 | 10 | 15 |
10kw (3600rpm) |
Air | |||
| TY1X30 | 30 | 2.5 | 5 | 15 | 20 | 12(16) | 12 | |||
| TY1X40 | 45 | 40 | 2.5 | 5 | 20 | 35 | 77(103) | Water | 24 | |
| TY1X50 | 50 | 40 | 2.5 | 5 | 25 | 45 | 2.4 | 77(103) | Water | 24 |
| TY140IV | 1x140 | 1x120 | 2.5 | 5 | 35 | 1x120 | 1.2 | 77(103) | Water | 24 |
| TY2X35 |
2x40/ 1x80 |
2x35/ 1x70 |
2.5 | 5 |
2x20/ 1x40 |
2x30/ 1x60 |
5 | 77(103) | Water | 24 |
| TY2X40 |
2x45/ 1x90 |
2x40/ 1x80 |
2.5 | 5 |
2x20/ 1x40 |
2x35/ 1x70 |
5 | 77(103) | Water | 24 |
| TY2X50 |
2x55/ 1x110 |
2x50/ 1x100 |
2.5 | 5 |
2x25/ 1x50 |
2x45/ 1x90 |
5 | 77(103) | Water | 24 |
| TY2X70 |
2x70/ 1x140 |
2x65/ 1x130 |
2.5 | 5 |
2x25/ 1x50 |
2x60/ 1x120 |
5 | 77(103) | Water | 24 |
| TY2x70IV |
2x70/ 1x140 |
2x65/ 1x130 |
2.5 | 5 |
2x25/ 1x50 |
2x60/ 1x120 |
5 | 77(103) | Water | 24 |
| TY2X90 |
2x100/ 1x200 |
2x90/ 1x180 |
2.5 | 5 |
2x40/ 1x80 |
2x80/ 1x160 |
2 |
130kw (2500r/min) |
Water | 24 |
| TY4x50 |
4x50/ 2x200 |
4x40/ 2x80 |
2.5 | 5 |
4x20/ 2x40 |
4x40/ 2x80 |
1.25 | 77(103) | Water | 24 |
| Model | Bull-wheel diameter | Max conductor diameter | Max optical fiber cable diameter | Groove width | Groove number | Total weight | Overall damension |
| mm | mm | mm | mm | kg | mm | ||
| TY1X7.5 | 1100 | 24 | 21 | 220 | 1 | 850 | 2300*1250*1620 |
| TY1X20 | 1300 | 40 | 21 | 55 | 5 | 1920 | 4080*1930*2300 |
| TY1X20II | 800 | 23 | 45 | 5 | 950 | 2400*1500*1650 | |
| TY1X20III | 800 | 22.5 | 55 | 5 | 1150 | 2500*1500*1700 | |
| TY1X30 | 1300 | 40 | 21 | 60 | 5 | 2064 | 3700*1950*2150 |
| TY1X40 | 1300 | 40 | 21 | 55 | 5 | 3430 | 4000*2000*2300 |
| TY1X50 | 1300/1500 | 55 | 21 | 68 | 6 | 2400 | 4000*1900*2300 |
| TY140IV | 1500 | 40 | 16 | 10000 | 5500*2280*2700 | ||
| TY2X35 | 1300 | 40 | 2x5 | 4500 | 4300*2250*2700 | ||
| TY2X40 | 1300/1500 | 40 | 2x5 | 6230 | 4300*2250*2700 | ||
| TY2X50 | 1300/1500 | 40 | 2x5 | 6000 | 4700*2300*2700 | ||
| TY2X70 | 1700 | 40 | 2x6 | 7500 | 4700*2300*2700 | ||
| TY2x70IV | 1500 | 40 | 2x8 | 10000 | 5500*2280*2700 | ||
| TY2X90 | 1900 | 50 | 2x6 | 7500 | 5400*2300*2700 | ||
| TY4x50 | 1500 | 40 | 4x5 | 13000 | 5900*2300*2700 |
Configuration
Hydraulic Transmission
Additional Devices
