TY40 Hydraulic Puller Transmission Line Stringing Equipment Max Intermittent Pull 40kN

TY40 Hydraulic Puller Transmission Line Stringing Equipment Max Intermittent Pull 40kN
TY40 Hydraulic Puller Transmission Line Stringing Equipment Max Intermittent Pull 40kN
video play

Large Image :  TY40 Hydraulic Puller Transmission Line Stringing Equipment Max Intermittent Pull 40kN

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY40-3
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Detailed Product Description
Type: Hydraulic Puller Max Intermittent Pull: 40kN
Speed At Max Pull: 2.5km/h Diesel: 77kw(103hp)
Bull-wheel Diameter: 400mm Total Weight: 3000kg
Overall Dimension: 3600×2600×2200mm Engine: Cummins
High Light:

transmission line construction equipment

,

overhead transmission line stringing equipment



Transmission Line Stringing Equipment TY40 Max Intermittent Pull 40kN Hydraulic Puller



Together with tension machine, this model allows for the tension stringing of 220kV lines in mountainous and hilly areas and can be used for the traction stringing of OPGW or ADSS cable in various terrains.



Model   TY40 TY60 TY120 TY150 TY220 TY280 TY380
Max intermittent pull KN 40 60 120 150 220 280 380
Max continuous pull KN 30 50 100 120 180 250 350
Speed at max pull km/h 2.5 2.5 2.5 2.5 2.5 2.5 2.5
Max speed km/h 5 5 5 5 5 5 5
Pull at max speed KN 20 25 50 60 90 120 170
Diesel kw(hp) 77(103) 77(103) 129(173) 129(173) 239(320) 298(400) 440(590)
Cooling system   Water
Electrical system V 24
Bull-wheel diameter mm 400 450 600 600 760 960 960
Groove number   7 7 10 10 10 11 11
Max rope diameter mm 16 18 24 24 30 38 38
Max diameter of rope reel mm 1200 1400 1400 1600 1600 1600 1900
Total weight kg 3000 3500 4800 5500 6800 12800 13600
Overall dimension mm

3600*2600

*2200

3800*2100

*2300

4000*2300

*2300

4300*2300

*2400

5300*2360

*2750

5800*2300

*2700

6000*2600

*2800

Engine   Cummins

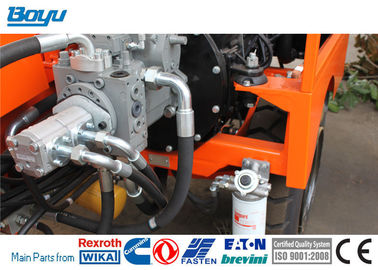

Main pump   German Rexroth
Main motor speed reducer   German Rexroth
Tail bracket hoisting motor   American Eton
Hydraulic meter   German
Operating handle   German Rexroth
Tail bracket hydraulic valve   Atos Italy



Configuration

·On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1200

·Manual front stabilizer

·Grounding connection point

·Hydraulic dynamometer with set-point and automatic control of maximum pull

·Hydraulic oil cooling system

·Control instruments for hydraulic system and diesel engine



Additional Devices

·Lighting system for the trailer

·Hydraulic rope clamp for reel change

·Swivel guide rope roller

·Trailer for towing at max speed of 30 km/h

·Extra shaft

·Digital speed and meter counter (extra charge)



TY40 Hydraulic Puller Transmission Line Stringing Equipment Max Intermittent Pull 40kN 0



Company Profile
History
  1. Established in 1994, Yixing city Boyu power machinery Co., LTD
  2. In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
  3. In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
  4. In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
  5. In 2009 reworded significant achievement in Wuxi city
  6. In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
  7. In 2010 achieved the national ministry of science and technology innovation in science and technology project.
  8. To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico,Germany.
