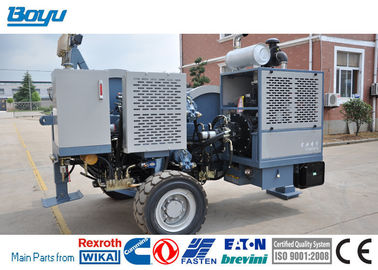

Liquid Cooling Cable Tensioner TY1x80 Diesel 105hp Hydraulic Tensioner

video play

Large Image :  Liquid Cooling Cable Tensioner TY1x80 Diesel 105hp Hydraulic Tensioner

Product Details:
Place of Origin: China
Brand Name: Boyu
Certification: ISO9001
Model Number: TY1X80-21
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 25-35 days
Payment Terms: TT/LC
Supply Ability: 100sets/month.
Detailed Product Description
Max Tension: 1x80kN Speed At Max Tension: 2.5km/h
Total Weight: 6230kg Diesel: 105hp
Cooling System: Liquid Main Motor: German Rexroth/French Leduc
Engine: Cummins Groove Number: 8
High Light:

hydraulic cable puller


Power Line Stringing Equipment

Hydraulic Cable Tensioner TY1x80 Diesel 105hp Hydraulic Tensioner


The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains, suitable for use at altitudes up to 1500 meters above sea level.



Bull-wheel diameter: 1500mm

Max conductor diameter: 42mm

Groove number: 8

Total weight: 6230kg

Overall dimension (length*width*height): 4500×2350×2700mm



Max tension: 1x80kN

Speed at max pull: 2.5km/h

Max speed: 6km/h

Pull at max speed: 1x40kN

Max reverse pulling force: 1x70kN



Diesel 105hp Euro II, 4-stroke cycle, turbo-charged

Cooling system liquid

Electrical system 24V


Main configuration
  1. Engine: Cummins
  2. Hydraulic pump: German Rexroth/Dnish Danfoss
  3. Main motor:German Rexroth/French Leduc
  4. Speed reducer: German Rexroth
  5. Hydraulic meter: German
  6. Operating handle: German Rexroth


Hydraulic Transmission
  1. The machine can realize step less speed.
  2. The machine is provided with tension presetting system.


  1. Negative self-acting hydraulic brakes
  2. Hydraulic dynamometers, Hydraulic oil cooling system
  3. Digital speed and meters counter
  4. Control instruments for hydraulic system and diesel engine
  5. Rigid axle for towing at max speed of 30km/h with parking brake
  6. Hydraulic power pack to control up to 2 separate drum stands with hydraulic motor
  7. Grounding connection point


Additional Devices
  1. Lighting system for the trailer
  2. 2 hydraulic rope/conductor clamp(extra charge)
  3. Swivel guide rope roller
  4. Hydraulic front stabilizer
  5. Trailer for towing at max speed of 30 km/h
  6. Digital speed and meter counter


Additional Devices
  1. The chassis provided with Brake, back lights and mudguard, with a single point lift to allow lifting with a crane.
  2. Biodegradable hydraulic oil, Allowable tension indictor, Overload tension alarm, First Aid Kit
  3. Manufacturer's workshop maintenance manual, in English
  4. Manufacturer's recommended tools.
  5. Lockable toolbox, Holding fixture for hose kit, Grounding plate, Acoustic insulation
  6. Manufacturer's routine spares for five years' duty (filters, bulbs, etc.).
  7. Cable and radio remote control fully replacing all controls at machine panel.
  8. Remote diagnosis via GSM network with GPS modem, Synchronization system
  9. Hydraulic system for drum stand control with flat face quick action couplings
  10. Auxiliary Hydraulic system (700/1000 bar) for power pressing tool

Liquid Cooling Cable Tensioner TY1x80 Diesel 105hp Hydraulic Tensioner 0
