Diesel 77kw 103hp Hydraulic Tensioner Machine Max Tension 4x50 (2x100) KN

China Diesel 77kw 103hp Hydraulic Tensioner Machine Max Tension 4x50 (2x100) KN supplier
Diesel 77kw 103hp Hydraulic Tensioner Machine Max Tension 4x50 (2x100) KN supplier Diesel 77kw 103hp Hydraulic Tensioner Machine Max Tension 4x50 (2x100) KN supplier Diesel 77kw 103hp Hydraulic Tensioner Machine Max Tension 4x50 (2x100) KN supplier Diesel 77kw 103hp Hydraulic Tensioner Machine Max Tension 4x50 (2x100) KN supplier

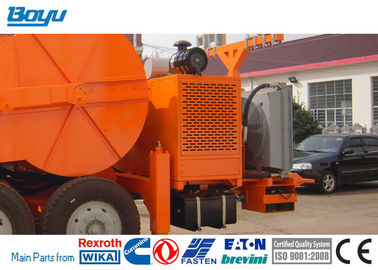

Large Image :  Diesel 77kw 103hp Hydraulic Tensioner Machine Max Tension 4x50 (2x100) KN

Product Details:

Place of Origin: China
Brand Name: BOYU
Certification: ISO9001
Model Number: TY4x50

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Container
Delivery Time: 25-35 days
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Contact Now
Detailed Product Description
Max Tension: 4x50 (2x100) KN Engine: Cummins
Diesel: 77kw(103hp) Max Reverse Pulling Speed: 1.25km/h
Max Conductor Diameter: 40mm Groove Number: 4X5

TY4x50 Tension Stringing Equipment Diesel 77kw(103hp) Hydraulic Tensioner Max tension 4x50 (2x100) KN



Engine Cummins
Hydraulic pump German Rexroth/Dnish Danfoss
Main motor German Rexroth/French Leduc
Speed reducer German Rexroth
Hydraulic meter German WIKA
Operating handle German Rexroth
Diesel 77kw(103hp)
Cooling system water
Electrical system

24V



 Max tension  4x50 (2x100) KN
 Max continue tension  4x40 (2x80) KN
 Speed at max continue tension  2.5km/h
 Max feeding speed  5km/h
 Corresponding tension  4x20 (2X40) KN
 Max reverse pulling force  4X40kN /2x80kN
 Max reverse pulling speed  1.25km/h
 Bull-wheel diameter  1500mm
 Groove number  4X5
 Max conductor diameter  40mm
 Total weight  13000kg
 Overall dimension (LxWxH)  5900×2300×2700mm



Hydraulic Transmission

  • The machine can realize step less speed.
  • The machine is provided with tension presetting system.

Diesel 77kw 103hp Hydraulic Tensioner Machine Max Tension 4x50 (2x100) KN
